5S228AT 5-S-228AT Ch=5521AT; Zenith Radio Corp.; (ID = 187783) Radio
Zenith Radio Corp.;: 5S228AT 5-S-228AT Ch=5521AT [Radio] ID = 187783 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5S228AT 5-S-228AT Ch=5521AT, Zenith Radio Corp.; Chicago, IL:

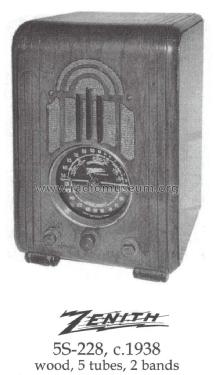

5-S-228AT Ebay seller stafx2 image shows model 5-S-228 which use the same cabinett

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner

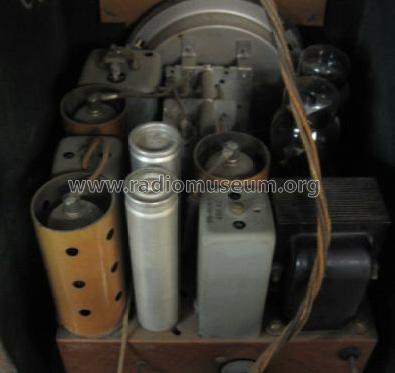

Valves / Tubes 5: 6A8G 6K7G 6Q7G 6F6G 5Y4G
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 5S228AT 5-S-228AT Ch=5521AT - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 10.3 x 15.3 x 9.5 inch / 262 x 389 x 241 mm
Price in first year of sale 30.00 $
Collectors' prices
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Zenith Radio The Glory Years 1936-1945
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 170.)
