6D612 Ch=6B04; Zenith Radio Corp.; (ID = 91831) Radio
Zenith Radio Corp.;: 6D612 Ch=6B04 [Radio] ID = 91831 720x499
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6D612 Ch=6B04, Zenith Radio Corp.; Chicago, Illinois:

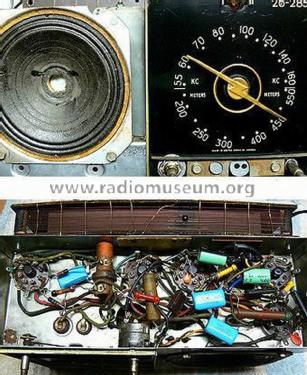

Zenith 6-D-612(Ch=6B04)1942 copy from Ebay seller

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, Illinois
alternative name

Chicago Radio Lab
Year: 1942 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12J7G 12SA7G 12SK7GT 12SQ7GT 35L6G 35Z5G
Principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 6D612 Ch=6B04 - Zenith Radio Corp.; Chicago,
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 12 x 6.9 x 6.8 inch / 305 x 175 x 173 mm
Price in first year of sale 21.00 $
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before


All listed radios etc. from Zenith Radio Corp.; Chicago, Illinois
