For model B728F Ch= 7A03, Zenith Radio Corp.; Chicago, IL:

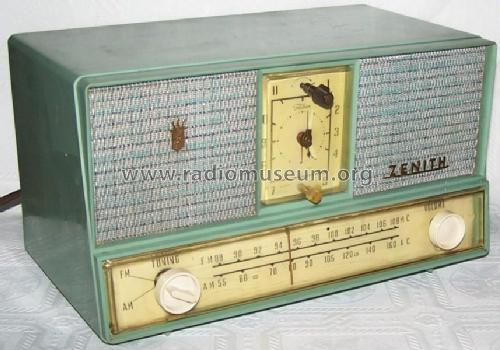

B-728-F(Ch=7A03)1959 copy from Ebay seller wizardshopper

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6BJ6 12AT7 12BA6 12BA6 12AU6 19T8 35C5
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: B728F Ch= 7A03 - Zenith Radio Corp.; Chicago,
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 13.375 x 7.5625 x 7.8125 inch / 340 x 192 x 198 mm
Notes

The Zenith Modell B728F is an AC Operated AM-FM Superheterodyne Receiver with Electric Clock and the ability to operate appliances with up to 1100 watts.

The following models use the same schematic and cabinet but have different cabinet colors.

Model

Cabinet Color

B728C

Charcoal Black

B728F

Pine Frost Green

B728W

Snow White

Circuit diagram reference Beitman Radio Diagrams Vol. 19, 1959
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 5-59, Set 442, Folder 19)

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
