• Year
  • 1957–1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 74435

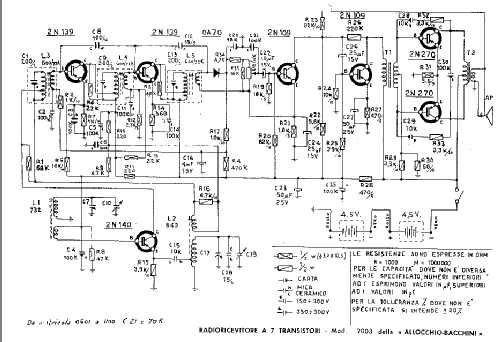

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 2 x 4,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 2003 - Allocchio Bacchini Radialba;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 385 x 280 x 130 mm / 15.2 x 11 x 5.1 inch
  • External source of data
  • Guida pratica transistor radio; Antique radio magazine
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
