• Country
• Spain

• Manufacturer / Brand
• Askar, Ascar; Irún

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 174776

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• HCH81 HF93 HBC90 HL94 HY90

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 110-127 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

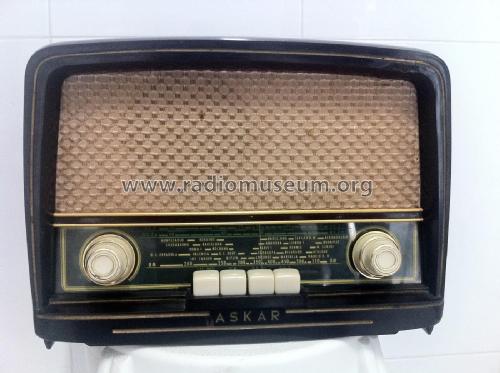

• Model: 458-U - Askar, Ascar; Irún

• Shape
• Tablemodel with Push Buttons.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.

• Other Models

• Here you find 127 models, 121 with images and 35 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Askar, Ascar; Irún
