Atlas 210 and Atlas 210X

Atlas 210 and Atlas 210X ; Atlas Radio Co.; (ID = 1342790) Amateur Atlas 210 and Atlas 210X ; Atlas Radio Co.; (ID = 236587) Amateur
Atlas 210 and Atlas 210X ; Atlas Radio Co.; (ID = 333472) Amateur Atlas 210 and Atlas 210X ; Atlas Radio Co.; (ID = 333474) Amateur
Atlas 210 and Atlas 210X ; Atlas Radio Co.; (ID = 333475) Amateur Atlas 210 and Atlas 210X ; Atlas Radio Co.; (ID = 333476) Amateur
Atlas 210 and Atlas 210X ; Atlas Radio Co.; (ID = 333477) Amateur Atlas 210 and Atlas 210X ; Atlas Radio Co.; (ID = 333478) Amateur
Atlas 210 and Atlas 210X ; Atlas Radio Co.; (ID = 569350) Amateur
Use red slider bar for more.
Atlas 210 and Atlas 210X ; Atlas Radio Co.; (ID = 1342790) Amateur
Atlas Radio Co.;: Atlas 210 and Atlas 210X [Amateur] ID = 1342790 933x617
Select picture or schematic to display from thumbnails on the right and click for download.
For model Atlas 210 and Atlas 210X, Atlas Radio Co.; Solana Beach, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Atlas Radio Co.; Solana Beach, CA
Year: 1974 Type: Amateur Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) 18:
Principle Superhet with RF-stage; ZF/IF 5520 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit. / DC 12-14 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Atlas 210 and Atlas 210X - Atlas Radio Co.; Solana Beach,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 250 x 100 x 260 mm / 9.8 x 3.9 x 10.2 inch
Notes

The Atlas 5-Band-HF-Transceiver model 210 and 210X cover all classical HAM-Bands from 80 to 10 m; Pout (CW): 55–80 W (depending on band).

Differences we know:

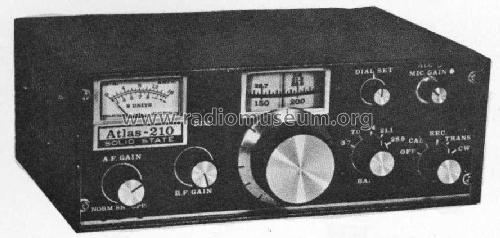

Model 210:
The frequency window is green, VFO-knob is 15 divisions. Ammon instruments
The VFO scale is 0- 350KHz and 28.4 - 29.4 and it is marked 210B. no NB label in the front.

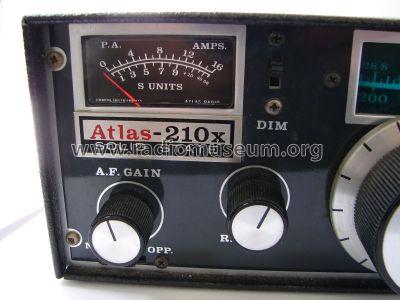

Model 210X:
The frequency window is clear plexyglass, VFO-knob is 22 divisions. Dyson instruments.
The X has a more compress scale , making it more difficult to tune on a station

Atlas Radio Co. was founded in 1974 and Atlas-210, revised it was Atlas 210X and 210 was probably the first model, followed by Atlas-215X. The Atlas 210X was selected by the crew of "Double Eagle" for their record breaking balloon crossing over the Atlantic.

Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
Price in first year of sale 1,995.00 DM
Collectors' prices
Mentioned in Katalog Fa. Hannes Bauer, 1976

Model page created by Joachim Glüder. See "Data change" for further contributors.
