Radiobell 638 (638A) 6U7G

Radiobell 638 ; Bell Telephone (ID = 1118048) Radio
Radiobell 638 ; Bell Telephone (ID = 1051818) Radio Radiobell 638 ; Bell Telephone (ID = 1051819) Radio
Radiobell 638 ; Bell Telephone (ID = 1051820) Radio Radiobell 638 ; Bell Telephone (ID = 1051821) Radio
Radiobell 638 ; Bell Telephone (ID = 1051822) Radio Radiobell 638 ; Bell Telephone (ID = 1058977) Radio
Radiobell 638 ; Bell Telephone (ID = 1822007) Radio
Use red slider bar for more.
Radiobell 638 ; Bell Telephone (ID = 1051818) Radio
Bell Telephone: Radiobell 638 [Radio] ID = 1051818 933x564
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiobell 638 (638A) 6U7G, Bell Telephone Manufacturing (Radiobell, Standard); Antwerp:
Q = gerät von Kris Varga

Country:  Belgium
Manufacturer / Brand:  Bell Telephone Manufacturing (Radiobell, Standard); Antwerp
Brand

Radiobell
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6U7G 6A8G 6U7G 6Q7G 6G5 or 6H5 6N6G 5Z4G
Main principle Superhet with RF-stage; ZF/IF 445 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120; 135; 150; 225; 250 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Radiobell 638 [6U7G] - Bell Telephone Manufacturing
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 670 x 405 x 330 mm / 26.4 x 15.9 x 13 inch

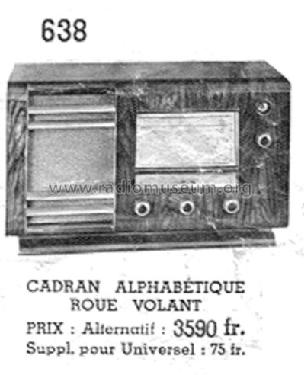

Notes Also advertised for 3490 Bfr.
Price in first year of sale 3,590.00 BFR
Source of data -- Original prospect or advert
Mentioned in Manuel de la Radio 1940, van Cortenberghe
Literature/Schematics (1) Brans, P.H. Radio Schema's, Antwerpen (1943 deel II)

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
