Derby 93750 Serie U ab 480001
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1963/1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 85240
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

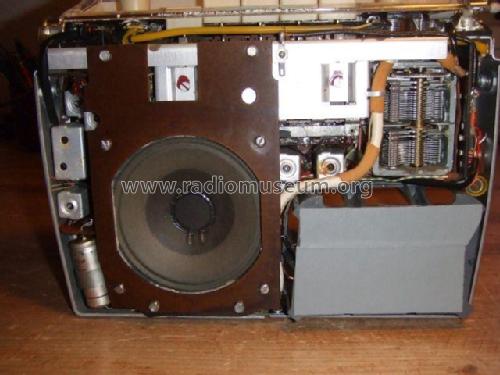

Eigenes Gerät (Privatkauf).
Eigenes Gerät (Privatkauf)

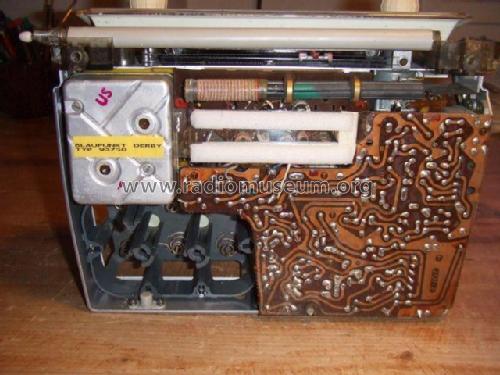

Eigenes Gerät (Privatkauf).
Eigenes Gerät (Privatkauf).
Eigenes Gerät (Privatkauf).
Eigenes Gerät (Privatkauf).
Eigenes Gerät (Privatkauf).
Eigenes Gerät (Privatkauf).
eBay item number:175491289368

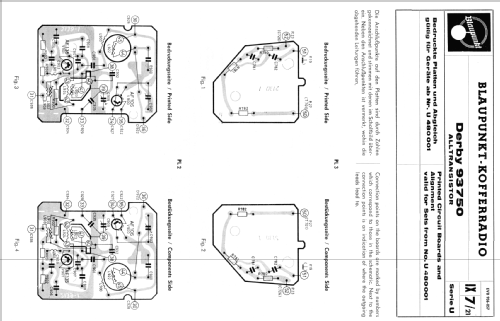

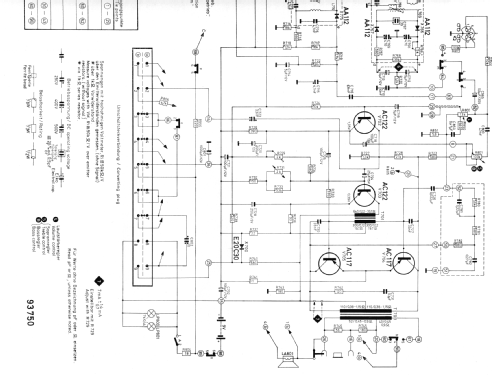

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; Export model
- Tuned circuits
- 7 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Storage and/or dry batteries / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- from Radiomuseum.org
- Model: Derby 93750 Serie U [ab 480001] - Blaupunkt Ideal, Berlin,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 270 x 200 x 88 mm / 10.6 x 7.9 x 3.5 inch
- Notes
-
Kurzwelle I 5,9–7,5 MHz, Kurzwelle II 2–5,2 MHz.
Gerät ist ein US- Exportmodell mit UKW-Frequenzbereich bis 108 MHz.
Betrieb im Auto mit Haltevorrichtung HV 950 /970.
- Net weight (2.2 lb = 1 kg)
- 3 kg / 6 lb 9.7 oz (6.608 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Bernd Pötzsch. See "Data change" for further contributors.
