• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1975

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 134151

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 47

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 9 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Köln Stereo 7.635.740 ab G 200001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

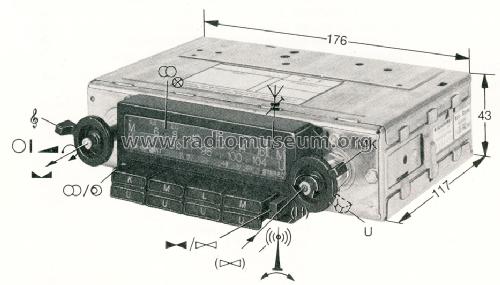

• Dimensions (WHD)
• 176 x 117 x 43 mm / 6.9 x 4.6 x 1.7 inch

• Notes
• Ausgangsleistung: 2× 5 W.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
