• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1981/1982

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 153972

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

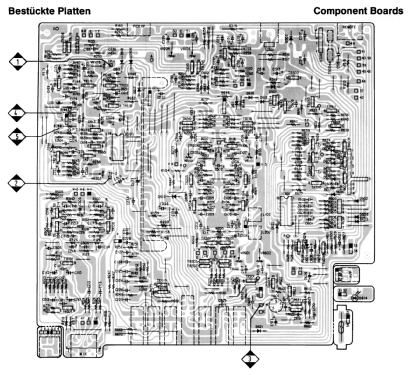

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: XC-1400 7621450 - Blaupunkt Ideal, Berlin,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 436 x 107 x 265 mm / 17.2 x 4.2 x 10.4 inch

• Notes

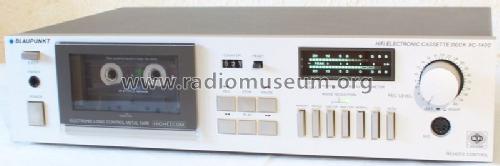

• HiFi Electronic Cassette Deck mit High-Com NR, Dolby B wirkt nur bei Wiedergabe, Infrarotfernbedienung in Verbindung mit HiFi Tuner XT-3400, vollelektronisches Laufwerk, Fluoreszenzanzeige.

• Net weight (2.2 lb = 1 kg)
• 4.6 kg / 10 lb 2.1 oz (10.132 lb)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
