RB115 ; Bogen, David Co., (ID = 1327886) Radio
Bogen, David Co.,: RB115 [Radio] ID = 1327886 933x449
Select picture or schematic to display from thumbnails on the right and click for download.
For model RB115, Bogen, David Co., Inc.; New York (NY):
aus ebay, #110884668138, Verkäufer flagshipaudio

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1958 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: 6AB4 12AT7 6BE6 6BA6 6AU6 6AU6 12AX7 6AV6 12AX7 6BQ6 6BQ6 6X4 6V4
Principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM.
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: RB115 - Bogen, David Co., Inc.; New
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 15 x 4.75 x 12.25 inch / 381 x 121 x 311 mm

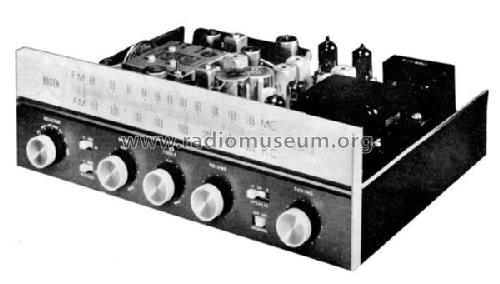

Notes The David Bogen Model RB115 is an AC operated 13 tube FM-AM Receiver with Push-pull output stage.
Price in first year of sale 159.50 USD

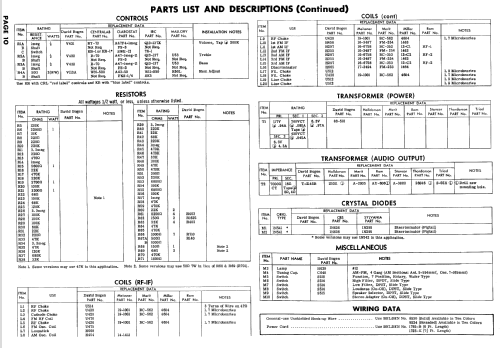

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-59, Set 428, Folder 6)
Literature/Schematics (2) Radio Shack Katalog 1960 - Seite 11

Model page created by Egon Penker. See "Data change" for further contributors.
