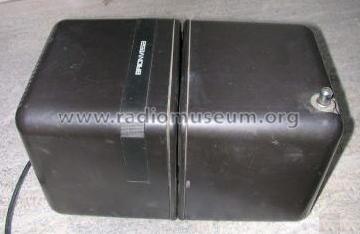

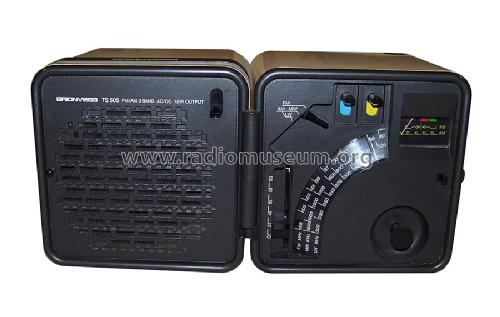

TS505a

• Country
• Italy

• Manufacturer / Brand
• Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116415

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• BF423 BF450 MPS-A09 TDA1220 TCA830

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Power out
• 1.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TS505a - Vega, BP Radio, Brionvega,

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 230 x 130 x 130 mm / 9.1 x 5.1 x 5.1 inch

• Notes

• Design by Marco Zanuso & Richard Sapper. Klapp Designer Radio.

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Author
• Model page created by Gerhard Härtl. See "Data change" for further contributors.
