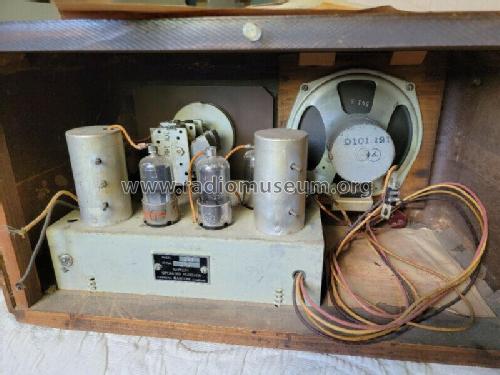

Canadian Marconi Co.: 228 [Radio] ID = 1189182 571x424
Select picture or schematic to display from thumbnails on the right and click for download.
For model 228, Canadian Marconi Co. Ltd. (CMC); Montreal:
Picture from Marconi Radio Service Manual

Country:  Canada
Manufacturer / Brand:  Canadian Marconi Co. Ltd. (CMC); Montreal
alternative name

CMC Canada || Marconi, Canada
Year: 1941 ?? Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1A7G or 1A7GT 1N5G or 1N5GT 1N5G or 1N5GT 1H5G or 1N5GT 1Q5GT
Principle Super-Heterodyne (Super in general); ZF/IF 462.5 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 1.5 & 2 x 45 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: 228 - Canadian Marconi Co. Ltd. CMC;
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes The Marconi Model 228 is a battery operated 5 Tube BC/SW Receiver. BC Band Tuning Range: 533 to 1730kHz. SW Band Tuning Range: 5.63 to 18.0MHz. Has Qty(2) IF amplifier tubes that are resistively coupled. Marconi Console Model 229 uses the same chassis and schematic.
Source of data Marconi Service Manual, Canada
Literature/Schematics (1) Radio College of Canada (RCC) (Volume 2, Page 83)

Model page created by John Kusching. See "Data change" for further contributors.
