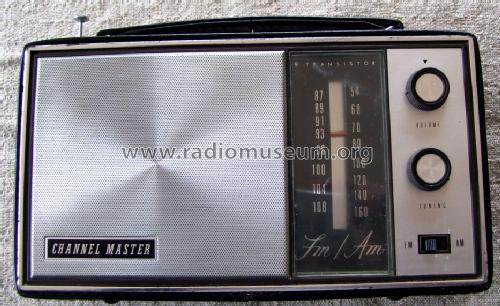

6466

Channel Master Corp.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1966 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 233107

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / 4x 1.5/ 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 1.5 W (max.)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: 6466 - Channel Master Corp.; USA
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 9.5 x 5.5 x 3.25 inch / 241 x 140 x 83 mm
  • Notes

  • Earphone jack and 6V EXT. PWR. jack are located on left end.

    Has 26 inch  chrome plated telescoping antenna.

    Uses 4 'C' batteries.

    1.5W is printed on speaker frame, speaker is labeled Sanyo.

    See also 6466A

  • Net weight (2.2 lb = 1 kg)
  • 2.4 lb (2 lb 6.4 oz) / 1.090 kg
  • Author
  • Model page created by Myron White. See "Data change" for further contributors.
