AN/ARR-41 R-648

AN/ARR-41 R-648; Collins Radio (ID = 536603) Military AN/ARR-41 R-648; Collins Radio (ID = 536605) Military
AN/ARR-41 R-648; Collins Radio (ID = 536606) Military
Use red slider bar for more.
AN/ARR-41 R-648; Collins Radio (ID = 536603) Military

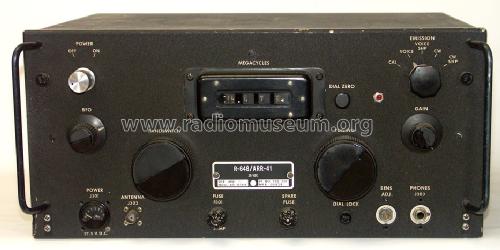

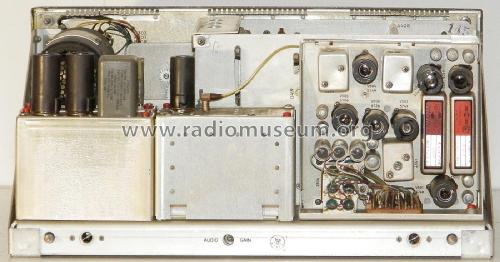

Collins Radio: AN/ARR-41 R-648 [Military] ID = 536603 933x552
Select picture or schematic to display from thumbnails on the right and click for download.
For model AN/ARR-41 R-648, Collins Radio Company; Cedar Rapids (IA)

Country:  United States of America (USA)
Manufacturer / Brand:  Collins Radio Company; Cedar Rapids (IA)
Year: 1956 Type: Military Equipment
Valves / Tubes 17: 5749 5726 5750 5654 5656 5814 6AU6 0A2
Principle Superhet, double/triple conversion; ZF/IF 500 kHz
Wave bands Short Wave (SW) and Long Wave (LW) only.
Details
Power type and voltage Direct Current supply (DC) / 27,5 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AN/ARR-41 R-648 - Collins Radio Company; Cedar
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 13 x 7 x 17 inch / 330 x 178 x 432 mm
Notes Flugzeugempfänger, "flying R390", 190-550 kHz, 2.0-25 MHz, 2 mechanische ZF-Filter (1,4 und 6.0 kHz Bandbreite), AM (A3), CW (A1), FSK (A2)
Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)
Source of data - - Manufacturers Literature
Literature/Schematics (1) NAVAIR 16-30ARR41-501, NAVWEPS 16-30ARR41-502

Model page created by Albert Öttl. See "Data change" for further contributors.
