Country:United States of America (USA)Manufacturer/Brand:Collins Radio Company; Cedar Rapids (IA) Year: 1959 – 1961 Type:
Amateur Transmitter/Receiver (and Transceiver)
Mod.-ID = 69109previous
|
Result List
|
next
|
New search for Radios etc.
Schematics etc.: 0 (for
members)
PrincipleSuperhet with a preamplification stage. Please use «To add informations to model» if you know more! Thanks. Récepteur TSF superhétérodyne avec préamplification de HF. Superhet mit HF-Vorstufe. Superhet with RF-stage Wave bandsBitte geben Sie die Wellenbänder an, falls Sie mehr wissen.Wave Bands given in the notes. Power type and voltageSupplied through an external unit or the main unit, e.g. a radio. Alimentation par l`appareil principal ou autre appareil. Speisung durch anderen Apparat, z.B. bei Vorsatzgeräten durch das Radio.Powered by external power supply or a main unit. / 12/28/115 Volt Loudspeaker/pwr.outThis set has no built-in loudspeaker. It requires a separate loudspeaker or headset - or the set has no speaker output (not a radio). Cet appareil n`a pas d`haut-parleur. Das Gerät verfügt nicht über einen eingebauten Lautsprecher - entweder weil er nicht nötig ist (Gerät hat keine Tonwiedergabe) oder weil er separat zu stellen ist - bzw. das Gerät ist für Kopfhörerbetrieb.- For headphones or amp. from Radiomuseum.org

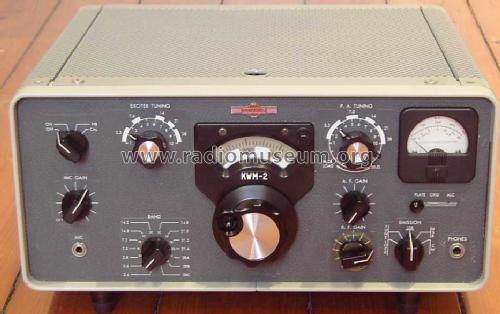

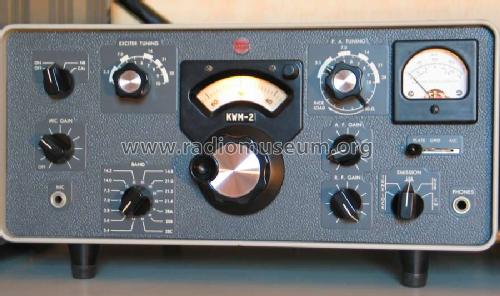

Model: KWM-2
MaterialMetal case. Caisse en métal. Gerät, dessen Gehäuse aus Metall gefertigt ist. Es kann sich um verschiedenartige Metalle und Oberflächenbearbeitungen handeln. Ist es hingegen nur ein Chassis, so erhält das Gerät eine andere Bezeichnung.Metal case Shape
Tablemodel, with any shape - general.
Dimensions (WHD)
14.75 x 6.6 x 13.25 inch / 375 x 168 x 337 mm
Valves / Tubes
18:
(more
for members)
NotesCW/SSB, double-conversion, coverage of fourteen 200 kHz ranges HAM- and MARS-shortwave-bands (military affiliated radio system). Several power-supplies available. Approx. 100 watts output. See also KWM-2A.
This model was suggested by Anonymous 1 Collector.
