• Year
  • 1942
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 139721

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 140; 160; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

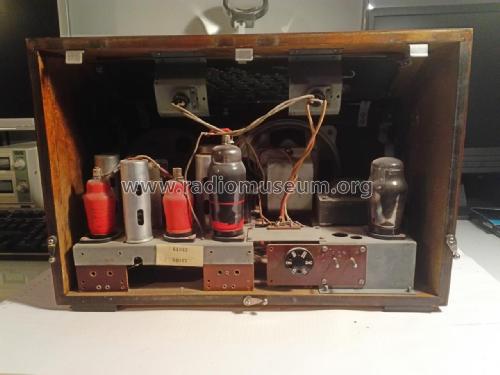

  • Model: V443 - Stern & Stern Concerton /
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 434 x 295 x 220 mm / 17.1 x 11.6 x 8.7 inch
  • Price in first year of sale
  • 350.00 SEK
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • - - Manufacturers Literature (Stern & Stern service data 1942)
