NR215 Console Chassis

NR215 Console Chassis; Freed-Eisemann Radio (ID = 218369) Radio
Use red slider bar for more.
NR215 Console Chassis; Freed-Eisemann Radio (ID = 218369) Radio

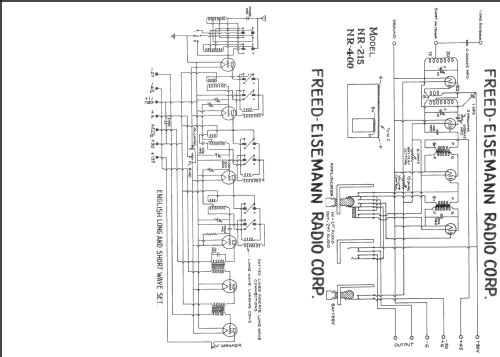

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Freed-Eisemann Radio Corporation; New York (Brooklyn), NY
Year: 1924 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4:
Principle TRF without reaction (non reg.dir.receiver); Neutrodyne
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: NR215 Console Chassis - Freed-Eisemann Radio
Shape Chassis only or for «building in»
Notes

Console panel. Two dials (primary tuning control knobs). The "Freed-Eisemann Dealer Catalog 1924" lists the models NR-5 (from April 1923), NR-6, NR-12, NR-20, NR-215, NR-400, Speaker FE-50 for models NR-5, NR-6 and NR-20, Speaker Console FE-150 matching NR-20, and FE-5C.

Price in first year of sale 95.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`sGuide 1921-
Mentioned in The Radio CollectorGrinder, 1995
Literature/Schematics (1) Radio Manufacturers of the 1920s Vol 2, Alan Douglas

All listed radios etc. from Freed-Eisemann Radio Corporation; New York (Brooklyn), NY
Here you find 113 models, 60 with images and 56 with schematics for wireless stes etc. French TSF for Télégraphie sans fil.
