4 Band Stereo Radio Recorder C9000 Automatic Stereo
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1977–1979
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 74135
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Q: Grundig, anzeige TI, 2-78

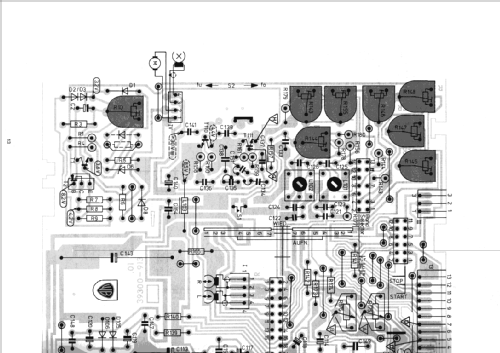

Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / 110-127; 220-230 / DC 12 / D: 6 x 1,5 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 4 Band Stereo Radio Recorder C9000 Automatic Stereo - Grundig Radio-Vertrieb, RVF,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 480 x 260 x 105 mm / 18.9 x 10.2 x 4.1 inch
- Notes
-

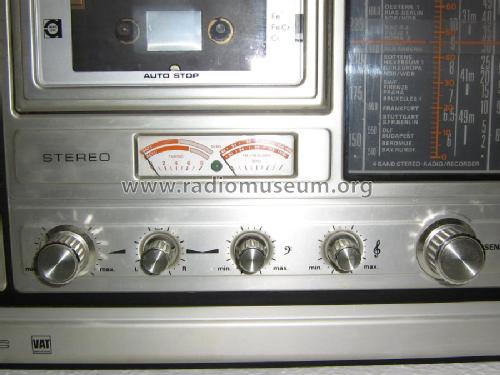

6 UKW-Programm-Fixtasten. Frequenzanzeige und Abstimmanzeige/Batteriekontrolle über 2 Drehspulinstrumente.
Stromversorgung auch über einsetzbaren Dryfit-Akku 476 möglich.
Kassettenlaufwerk CB 120/E.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Price in first year of sale
- 798.00 DM
- Mentioned in
- - - Manufacturers Literature (Grundig Revue August 1977, S.118 f.)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
- Other Models
-
Here you find 6196 models, 5420 with images and 4190 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Collections
The model 4 Band Stereo Radio Recorder is part of the collections of the following members.
Museums
The model 4 Band Stereo Radio Recorder can be seen in the following museums.
Literature
The model 4 Band Stereo Radio Recorder is documented in the following literature.
Forum contributions about this model: Grundig Radio-: 4 Band Stereo Radio Recorder C9000 Automatic Stereo
Threads: 2 | Posts: 3
Habe seinerzeit dieses Gerät am 25.2.1978 in Hamburg neu gekauft (Originalbeleg vorhanden). Originalpreis war damals 798 DM.
Eventuell müßte daher die Baujahresangabe geändert werden. Ich wollte aber nicht einfach so die vorhandenen Angaben in Frage stellen.
Leider habe ich das Gerät nicht mehr :-(
Wer weiß noch näheres über dieses Gerät ?
Mit (Neujahres-) Gruß
Michael Suck
Michael Suck † 22.11.11, 01.Jan.09
Hi:
I was cleaning my C9000 and found the speakers have a special feature, there looks to be a hair glued on both speaker paper cones, I don't think these are accidentally left over since both speakers have them. Any one knows what this hair supposed to do with the speakers?
Please read the blue information keys !!! Your picture has more than 130 KB
Prepare picture: - picture size The picture must not exceed 500 pixel in width. It's file size should be less than 40 KB (reduce «quality», use .jpg format).
Wolfgang Bauer
Songping Wan, 04.Jul.08
