Yacht-Boy 205

Yacht-Boy 205; Grundig Radio- (ID = 682038) Radio Yacht-Boy 205; Grundig Radio- (ID = 682035) Radio
Yacht-Boy 205; Grundig Radio- (ID = 682033) Radio Yacht-Boy 205; Grundig Radio- (ID = 497995) Radio
Yacht-Boy 205; Grundig Radio- (ID = 682031) Radio Yacht-Boy 205; Grundig Radio- (ID = 682032) Radio
Yacht-Boy 205; Grundig Radio- (ID = 682034) Radio Yacht-Boy 205; Grundig Radio- (ID = 682037) Radio
Yacht-Boy 205; Grundig Radio- (ID = 893901) Radio Yacht-Boy 205; Grundig Radio- (ID = 893902) Radio
Use red slider bar for more.

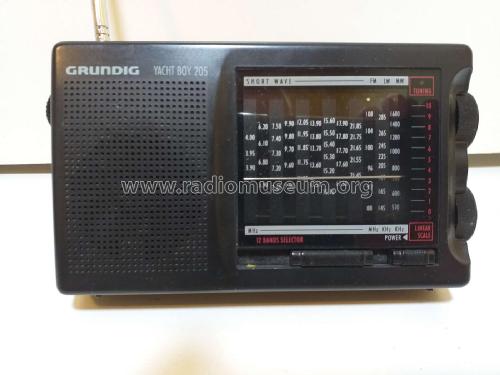

Yacht-Boy 205; Grundig Radio- (ID = 682038) Radio
Grundig Radio-: Yacht-Boy 205 [Radio] ID = 682038 872x620
Select picture or schematic to display from thumbnails on the right and click for download.
For model Yacht-Boy 205, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1993 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Yacht-Boy 205 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 150 x 90 x 35 mm / 5.9 x 3.5 x 1.4 inch
Notes shortwave coverage 75, 49, 41, 31, 25, 22, 19, 16, 13 mb. Ext. power pack: TN12bE
Net weight (2.2 lb = 1 kg) 0.330 kg / 0 lb 11.6 oz (0.727 lb)
Collectors' prices

Model page created by Martin Bösch. See "Data change" for further contributors.
