• Year
  • 1965 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 102890

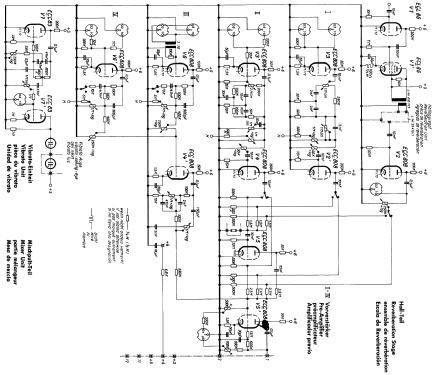

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220; 240 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 12 inch = 30.5 cm
  • Power out
  • 60 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Orgaphon 60MH - Hohner, Matthias, AG;
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 700 x 520 x 270 mm / 27.6 x 20.5 x 10.6 inch
  • Notes
  • mit Vibrato und Hall.
    40Hz...18kHz; Ausgangsleistung: Musik 80W, Dauer 60W. k <3% bei Nennleistung
    neu: "pumpfreies" Optokoppler-Vibrato 3-12Hz/0-80%
    Federhall, getrennt auf 4 der 5 Eingänge mischbar
    8x BY250
    LS: Breitbandsystem 2x 12" PM 300/37 - 8,5Ohm
  • Net weight (2.2 lb = 1 kg)
  • 30 kg / 66 lb 1.3 oz (66.079 lb)
  • Source of data
  • -- Collector info (Sammler)
