VHF Signal Generator 608C

VHF Signal Generator 608C; Hewlett-Packard, HP; (ID = 611983) Equipment

VHF Signal Generator 608C; Hewlett-Packard, HP; (ID = 611984) Equipment

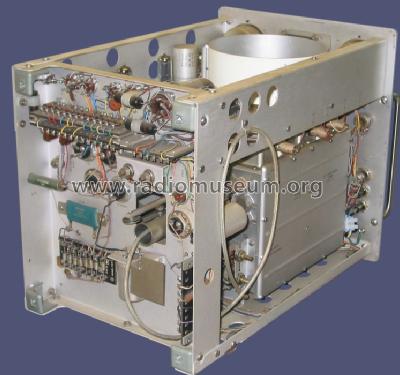

VHF Signal Generator 608C; Hewlett-Packard, HP; (ID = 604879) Equipment VHF Signal Generator 608C; Hewlett-Packard, HP; (ID = 604881) Equipment
VHF Signal Generator 608C; Hewlett-Packard, HP; (ID = 323621) Equipment VHF Signal Generator 608C; Hewlett-Packard, HP; (ID = 323622) Equipment
VHF Signal Generator 608C; Hewlett-Packard, HP; (ID = 604880) Equipment VHF Signal Generator 608C; Hewlett-Packard, HP; (ID = 604882) Equipment
VHF Signal Generator 608C; Hewlett-Packard, HP; (ID = 604883) Equipment
Use red slider bar for more.
VHF Signal Generator 608C; Hewlett-Packard, HP; (ID = 604879) Equipment
Hewlett-Packard, HP;: VHF Signal Generator 608C [Equipment] ID = 604879 632x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model VHF Signal Generator 608C, Hewlett-Packard, (HP); Palo Alto, CA:
Built by HP England, Bedford

Country:  United States of America (USA)
Manufacturer / Brand:  Hewlett-Packard, (HP); Palo Alto, CA
Year: 1960 ?? Type: Service- or Lab Equipment
Valves / Tubes 15: 5675 12AU7 6CL6 6080 6AU6 6AH6 6AL5 6BQ7 5651
Semiconductors (the count is only for transistors) 1:
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 115/230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: VHF Signal Generator 608C - Hewlett-Packard, HP; Palo Alto
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 337 x 416 x 533 mm / 13.3 x 16.4 x 21 inch
Notes Range 10-480 MHz in 5 bands. Output Level 0,1µV to 1V into a 50 Ohm load. Int. Modulation 400 or 1000 Hz from 0 to 95%. Ext. Mod. from 20 Hz to 20 kHz.
Net weight (2.2 lb = 1 kg) 28.148 kg / 62 lb 0 oz (62 lb)
Collectors' prices
Literature/Schematics (1) - - Data from my own collection (HP/ Operating and Service Manual 608C)

Model page created by Pietro Gallia. See "Data change" for further contributors.
