5675

Information - Help
ID = 5865



Tube type:  Triode, vacuum   UHF
Identical to 5675 = CV2971
Similar Tubes
Other class quality (otherwise equal):
  4042
First Source (s)
15.Nov.1949 : Electron Tube Registration List 801
Successor Tubes 4042

Base Pencil 2 pin plus side disc or top
Filament Vf 6.3 Volts / If 0.135 Ampere / Indirect / Specified voltage AC/DC
Description

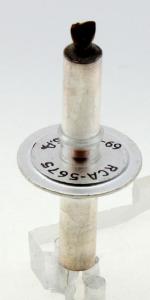

Glass pencil tube, intended for grouded grid applications up to 1.7GHz. May be operated at reduced input up to 3GHz. Suited for aircraft operation up to 100.000ft.
Made by GE, RCA, Sylvania, Tung-Sol.


Tube prices 4 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973
Tube Lore (I)

5675: HP 608D VHF Signalgenerator
Heinz Höger

sp150_g_3.gif 5675: RTT Schwandt
Günther Stabe † 19.8.20

More ...

Just Qvigstad
5675: RCA Transmitting Tubes TT-5
Emilio Ciardiello

More ...
Usage in Models 2= 1954?? ; 1= 1954 ; 1= 1957? ; 1= 1959?? ; 1= 1960?? ; 1= 1975?

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):7

Collection of



5675
