Geographic US538W

Geographic US538W; Ingelen, (ID = 26217) Radio

Geographic US538W; Ingelen, (ID = 339768) Radio
Geographic US538W; Ingelen, (ID = 117213) Radio Geographic US538W; Ingelen, (ID = 117217) Radio
Geographic US538W; Ingelen, (ID = 117216) Radio Geographic US538W; Ingelen, (ID = 73806) Radio
Geographic US538W; Ingelen, (ID = 117215) Radio Geographic US538W; Ingelen, (ID = 495285) Radio
Geographic US538W; Ingelen, (ID = 1306371) Radio Geographic US538W; Ingelen, (ID = 1306372) Radio
Geographic US538W; Ingelen, (ID = 709467) Radio Geographic US538W; Ingelen, (ID = 115786) Radio
Use red slider bar for more.
Geographic US538W; Ingelen, (ID = 117213) Radio

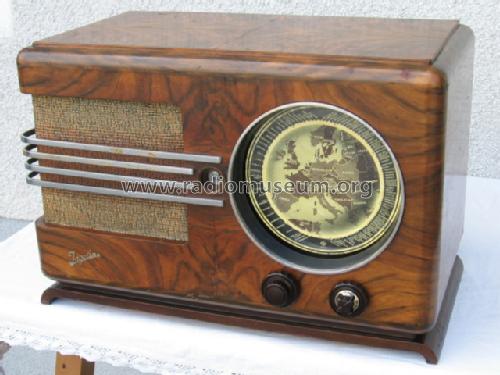

Ingelen,: Geographic US538W [Radio] ID = 117213 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Geographic US538W, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien:
Ingelen Geographic US538WG

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1937/1938 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EK2 EF5 EBC3 EL3 EM1 AZ1
Principle Super-Heterodyne (Super in general); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Geographic US538W - Ingelen, Elektrotechnische
Material Wooden case
Dimensions (WHD) 555 x 378 x 300 mm / 21.9 x 14.9 x 11.8 inch
Notes Geographic
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Here you find 429 models, 377 with images and 306 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
