• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108688

• • alternative name: Wholesale Radio

• Number of Tubes
• 5

• Valves / Tubes
• 12A8GT 12K7GT 12Q7GT 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: S-49 - Lafayette Radio & TV Corp; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 14.5 x 10.2 x 13 inch / 368 x 259 x 330 mm

• Notes

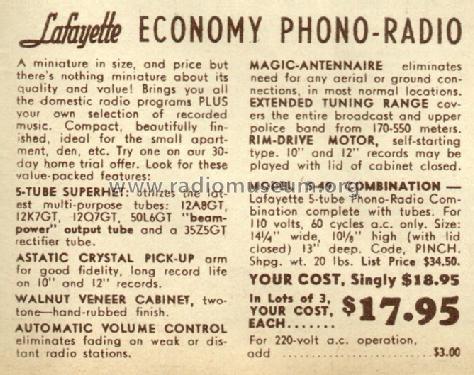

• This model is also included in catalog No.82, page 29 but is listed here as AC only. The price here is USD 17.95. .

  See details and summaries for the models of this Lafayette catalog no. 82, 1941 for radio season 1940/41. Model S-49 can already be found in Catalog No.80, page 1

• Price in first year of sale
• 20.00 $

• Mentioned in
• Lafayette Radio Catalog (catalog No.82, page 29)

• Literature/Schematics (1)
• 1940 Lafayette Catalog Nº 78

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
