Beacon Receiver BC-453

Beacon Receiver BC-453; MILITARY U.S. (ID = 846884) Radio

Beacon Receiver BC-453; MILITARY U.S. (ID = 846886) Radio
Beacon Receiver BC-453; MILITARY U.S. (ID = 842586) Radio Beacon Receiver BC-453; MILITARY U.S. (ID = 842588) Radio
Use red slider bar for more.
Beacon Receiver BC-453; MILITARY U.S. (ID = 842586) Radio

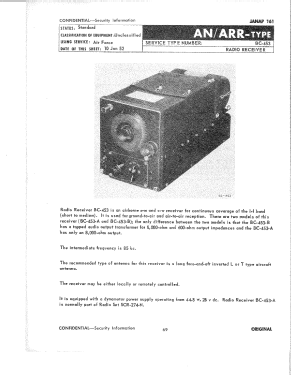

MILITARY U.S.: Beacon Receiver BC-453 [Radio] ID = 842586 860x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beacon Receiver BC-453, MILITARY U.S. (different makers for same model)

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1953 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SK7 12K8 12SK7 12SK7 12SR7 12A6
Principle Superhet with RF-stage; ZF/IF 85 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / 28 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Beacon Receiver BC-453 - MILITARY U.S. different makers
Material Metal case
Shape Rack
Dimensions (WHD) 125 x 140 x 300 mm / 4.9 x 5.5 x 11.8 inch
Notes Compact aircraft receiver BC-453(navigation beacon receiver) for 190 to 550 kHz, identical to R-23/ARC-5 but part (Basic Component) of the successor of the ARC-5 set, the "Radio Set SCR-274-N". Mechanicaly tuned from a separate remote tuning unit (which can be substituted by a knob), powered from 28 V DC driving an internal dynamotor providing high voltage.
Net weight (2.2 lb = 1 kg) 3.9 kg / 8 lb 9.4 oz (8.59 lb)
Collectors' prices
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (4) US Army Air Forces Manual SCR-274-N of 1943

Model page created by Hans Zimmermann. See "Data change" for further contributors.
