Minola Luxus 674
ID = 9963
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

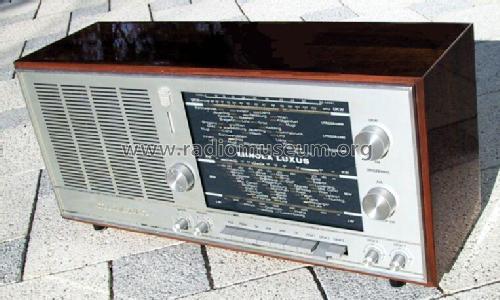

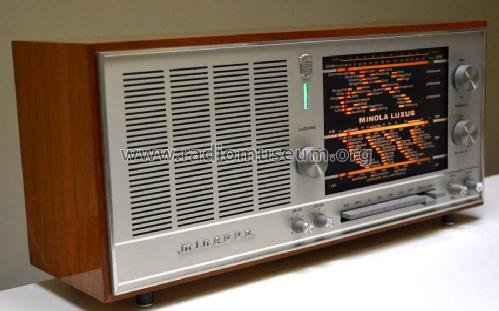

Minerva; Wien: Minola Luxus 674 [Radio] ID = 467475 933x628
| Country: Austria | Manufacturer/Brand: Minerva; Wien |
| Year: 1965 / 1966 | Type: Radio or Tuner |
| Valves / Tubes | 4: ECH81 EAF801 ECL86 EM87 |
|---|---|
| Transistors | 2: AF106 AF125 BA124 BA124 BA124 BA124 AA119 AA119 AA119 |
| Principle | Super-Heterodyne (Super in general); IF-Freq. 461/10700 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s); 9 FM-circuit(s) |

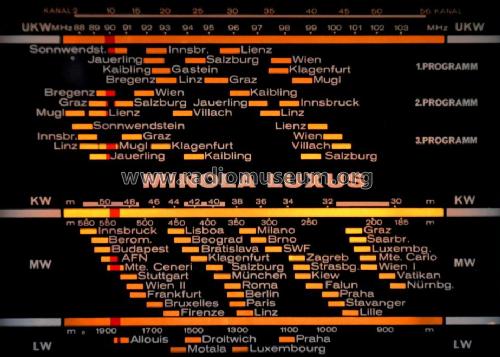

| Wave bands | Broadcast, Long Wave, Short Wave plus FM. |
| Power type and voltage | Alternating Current supply (AC) / 220/240 Volt |
| Loudspeaker/pwr.out | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch |
| from Radiomuseum.org | Model: Minola Luxus 674 |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 540 x 250 x 170 mm / 21.3 x 9.8 x 6.7 inch |
| Notes | 3 UKW Fixtasten. |
All listed radios etc. from Minerva; Wien
Here you find 559 models, 457 with images and 400 with schematics.
Collection of Josef Pils (A)
Collection of Wolfgang Bauer (A)
Collection of Karl Günther Goldsteiner (A)
Collection of Albert Weiss (A)
