BA124

Information - Help
ID = 35232

Country:
Germany
Brand: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Tube type:  Solid-State-Diode
Identical to BA124
Similar Tubes
Normally replaceable-slightly different:
  1S145 ; 1S352 ; 1S49 ; BA111 ; SMV709
Different maximum ratings:
  BA150
First Source (s)
Mar.1963 : Telefunken-Zeitung

Base Wires
Filament Solid State
Description

Silicon voltage variable capacitance diode for AFC.
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
7 x 3 x mm / 0.28 x 0.12 x inch
Weight 1 g / 0.04 oz
Information source -- Collector info (Sammler)   KTT 1969/70
  BA124: Funktechnik 7/66
Egon Strampe

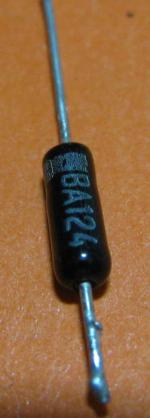

BA124
Jacky Parmentier


BA124: DVT 1971 ECA
Günther Stabe † 19.8.20


BA124: Datenb.Telef.Halbl. 1970/71
Walter Heinlin


Usage in Models 1= 1964 ; 3= 1965 ; 2= 1966? ; 5= 1966 ; 1= 1967? ; 7= 1967 ; 7= 1968 ; 8= 1969 ; 9= 1970 ; 2= 1971? ; 7= 1971 ; 1= 1973 ; 1= 1974 ; 1= 1975? ; 2= 1975 ; 2= 1976 ; 1= 1980

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):60
