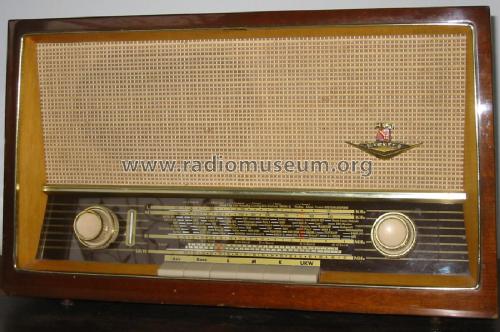

Elektra D12 Ch= 3/612

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180571

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

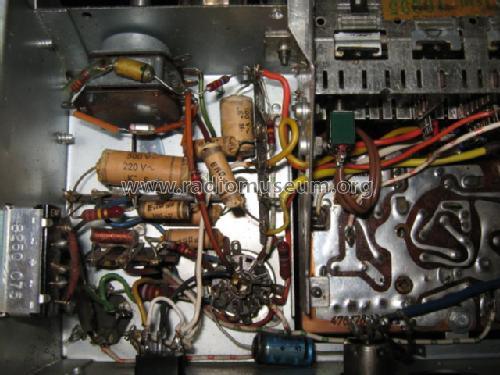

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EBF89 ECL86 EM84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110;125;220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Elektra D12 Ch= 3/612 - Nordmende, Norddeutsche Mende-

• Dimensions (WHD)
• 410 x 245 x 180 mm / 16.1 x 9.6 x 7.1 inch

• Notes
• Lautsprecher oval 180x130mm.
  Gerät wird in einer Taxliste (ohne Quellenangabe)für das Modelljahr 1962/63 auch unter der Chassisbezeichnung D120 geführt. Modellbezeichnung auf Chassis aber D12. Der Röhrenbestückungsplan hinter der Rückwand weist die Modell-Nr. 3/612 aus.

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• Price in first year of sale
• 283.00 DM

• Mentioned in
• Handbuch VDRG 1962/1963

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hans-Werner Ellerbrock. See "Data change" for further contributors.
