• Year
  • 1969/1970
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 27615

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

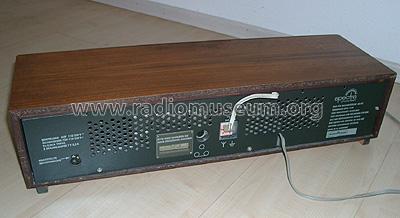

  • Model: Spectra Phonic 4001 970.126A Ch= 769.137L - Nordmende, Norddeutsche Mende-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 638 x 152 x 202 mm / 25.1 x 6 x 8 inch
  • Notes
  • UKW: 87,5 - 104 MHz
    MW: 515 - 1650 kHz
    LW: 140 - 360 kHz
    KW: 5950 - 6200 kHz
  • Net weight (2.2 lb = 1 kg)
  • 6.2 kg / 13 lb 10.5 oz (13.656 lb)
  • External source of data
  • erb
  • Mentioned in
  • -- Original-techn. papers.
