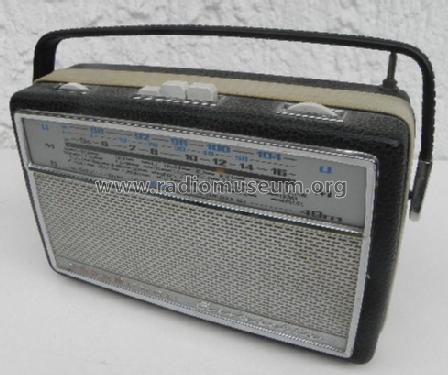

For model Stradella 49 m I091 967.109.10 Ch= 7/609-49m (Ch= 867.609.10), Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1966/1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF106 AF135 AF126 AF126 AF126 AC163 AC153 AC178 AC179 AA112 AA112 AA112
Reception principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 2x4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Stradella 49 m I091 967.109.10 Ch= 7/609-49m - Nordmende, Norddeutsche Mende-
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (usable without mains)
Dimensions (WHD) 237 x 144 x 70 mm / 9.3 x 5.7 x 2.8 inch
Notes

UKW: 87 - 104 MHz
MW: 515 -1620 kHz
KW: 5950 - 6200 kHz

4 Farben: bordeauxrot, deltagrün, golfblau, schwarz.

Eisenlose Endstufe

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Collectors' prices
Source of data Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
