Sens Orion AT 6461
Orion; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Orion; Budapest
- Year
- 1975–1977
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 165287

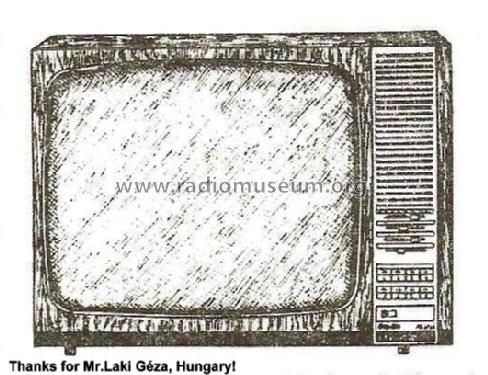

Thanks for Mr.Laki Géza, Hungary!
- Number of Tubes
- 7
- Number of Transistors
- 12
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15 cm = 5.9 inch
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sens Orion AT 6461 - Orion; Budapest
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 695 x 480 x 230 mm / 27.4 x 18.9 x 9.1 inch
- Notes
- 3 IC-s, VHF1-12 OIRT and CCIR, UHF 21-62 OIRT and CCIR. 4 sensor preselection.
- Source of data
- Radio- es TV- kapcsolások, 1975-77
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
