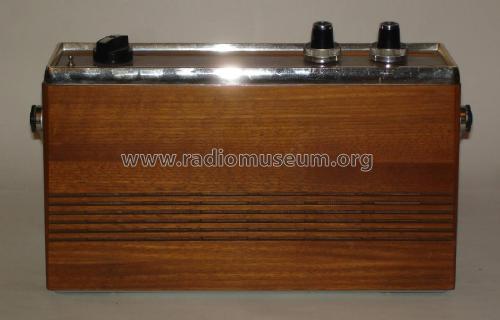

Colette Automatic P5D54T

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6986

• • Brand: Deutsche Philips-Ges.

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF121 AF124 AF126 AF126 AF126 AC125 AC126 AC128 AC128

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Colette Automatic P5D54T - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 310 x 177 x 89 mm / 12.2 x 7 x 3.5 inch

• Notes
• Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie; Netzbetrieb mit zusätzlichem Netzteil möglich.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Source of data
• Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb
