Philitina B0LN15U /01

• Country
• Portugal

• Manufacturer / Brand
• Philips Portugal

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72537

• • Brand: FAPAE

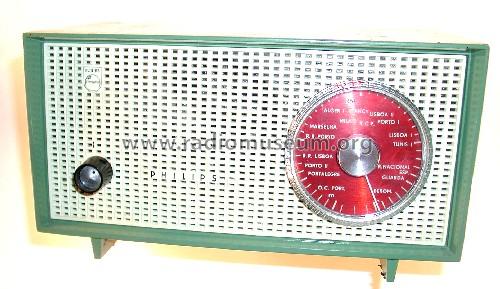

• Picture

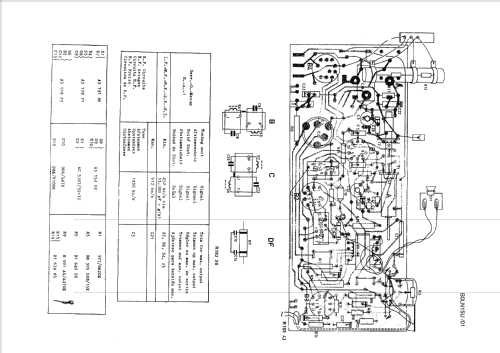

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH81 UBF80 UCL82 UY89

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110-127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Philitina B0LN15U /01 - Philips Portugal

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 261 x 142 x 142 mm / 10.3 x 5.6 x 5.6 inch

• Notes

• Same chassis as Philips model B0X15U /01.

  Tanto quanto pude entender de informações obtidas de fontes Portuguesas e Holandesas, alguns modelos de radios Philips montados na FAPAE - Portugal, sob licença Philips, eram similares aos que na Holanda foram referenciados com um X.

  ---

  As far as I can understand from Portuguese and Dutch sources, some Philips radio models assembled in FAPAE - Portugal , by Philips licence , were similar models to those made in Holland referenced with a X. These Portuguese models were referenced with two letters L and N (LN) meaning Lisbon. The dial-glasses were written in Portuguese language and also the appropriated country broadcasting stations were considered.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
