• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1973/1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29271

• • Brand: Deutsche Philips-Ges.

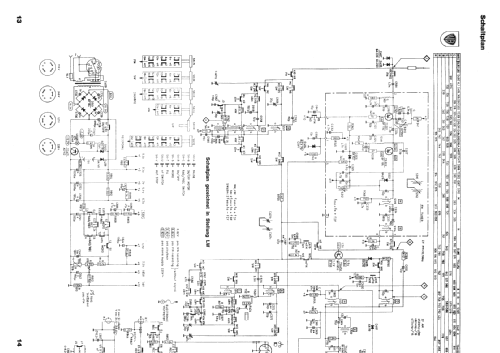

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 26

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands

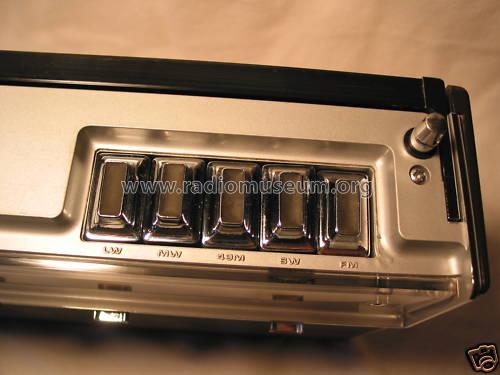

• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 127; 220; 240 / 6×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

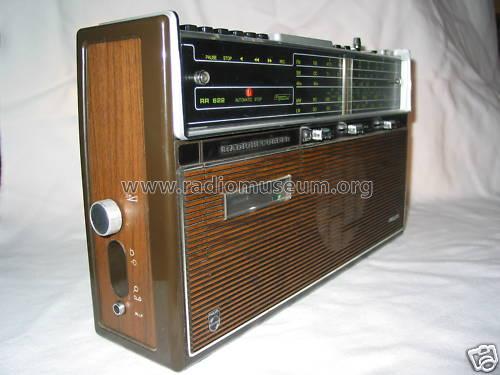

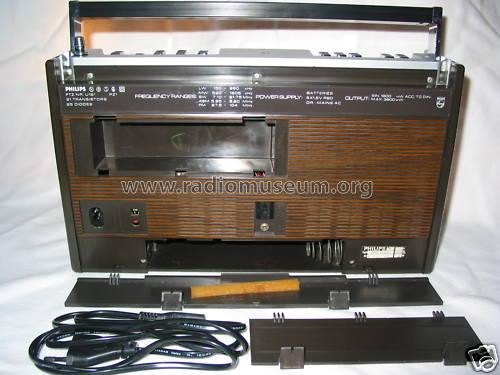

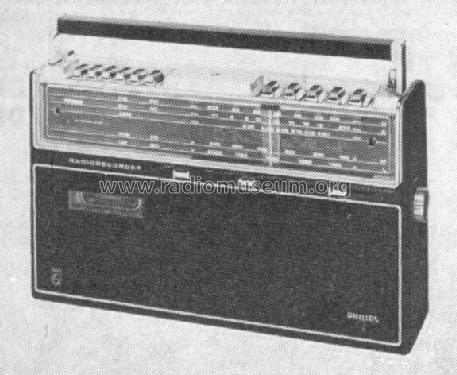

• Model: Radio Recorder de Luxe 22RR622 - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 365 x 210 x 90 mm / 14.4 x 8.3 x 3.5 inch

• Notes
• KW-Lupe, gespreiztes 49-m-Band.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1973
