• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1954/1955

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 19918

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 40

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

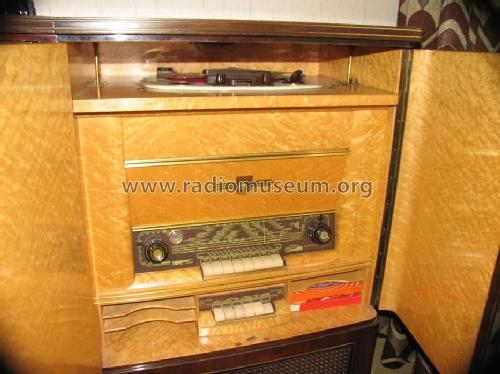

• Model: Rundfunk-Fernsehkomb.-Truhe RTD1734A - Philips Radios - Deutschland

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1900 x 1100 x 540 mm / 74.8 x 43.3 x 21.3 inch

• Notes
• TV-Chassis = TD1720A;
  Rundfunk-Chassis = Uranus 54;
  Tonbandgerät mit 9,5 cm/s., Plattenwechsler und Heimrufanlage. TBG von AEG, Pl-W von Philips

• Net weight (2.2 lb = 1 kg)
• 163 kg / 359 lb 0.5 oz (359.031 lb)

• Price in first year of sale
• 4,575.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Radio und Fernsehen (DDR) (11-1954, Seite 321)
