6T65 "Highland" Ch= KCS47A
RCA RCA Victor Co.: 6T65 "Highland" Ch= KCS47A [Television] ID = 1096965 694x933
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
RCA Manufacturing || Victor Talking Machine | ||||
|---|---|---|---|---|---|
| Year: 1950/1951 | Type: Television Receiver (TV) | ||||
| Valves / Tubes | 22: 6CB6 6J6 6AU6 6AU6 6AL5 6AV6 6K6GT 6AU6 6CB6 6AU6 6CB6 6AL5 12AU7 12AU7 6J5 6K6GT 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 16GP4 or 16GP4A or 16GP4B or 16GP4C |
| Principle | Superhet with RF-stage |
|---|---|
| Wave bands | VHF/UHF (see notes for details) |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 60 cycles, 115 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm |
| Power out | 3.5 W (max.) |
| from Radiomuseum.org | Model: 6T65 "Highland" Ch= KCS47A - RCA RCA Victor Co. Inc.; New |
| Material | Wooden case |
| Shape | Console with any shape - in general |
| Dimensions (WHD) | 27.25 x 37.75 x 19.5 inch / 692 x 959 x 495 mm |

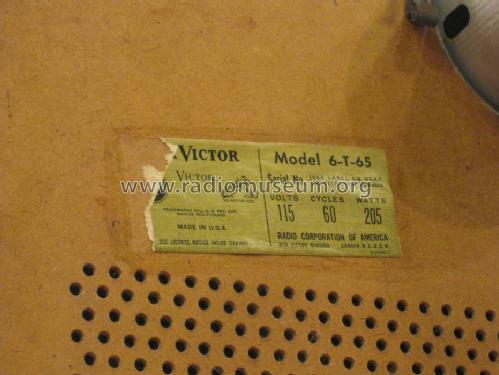

| Notes | The RCA 6T65 is a 16" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with picture tube 16GP4, 16GP4A, 16GP4B or 16GP4C. Cabinet color is Mahogany, Walnut or Limed Oak. Has "Eye Witness" & "Golden Throat" stickers, 205 W power consumption. |
| Net weight (2.2 lb = 1 kg) | 94 lb (94 lb 0 oz) / 42.676 kg |
| Collectors' prices | 1 Collector price (for members Radiomuseum.org) |
| Source of data | -- Collector info (Sammler) |

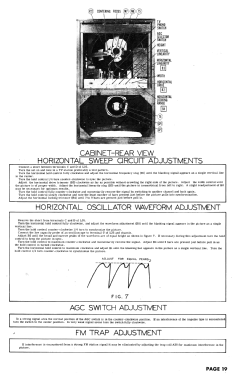

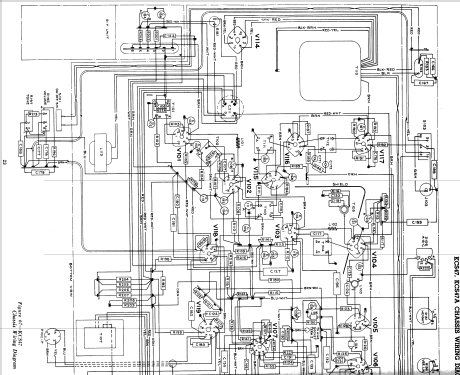

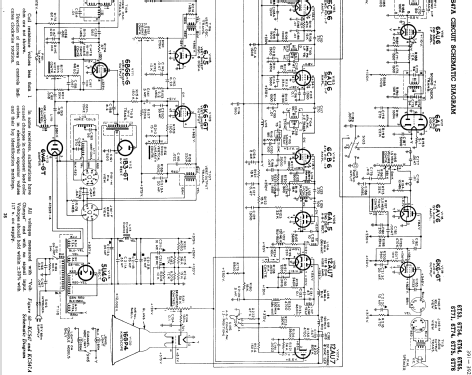

| Literature/Schematics (1) | RCA Victor Service Notes "Red Book" (RCA Victor Service Data Volume VI 1950 Pages 367-400) |
