721-TS (721TS) KCS 26-1 (KCS261)

60 cycles (Standard)


Country: United States of America (USA) Manufacturer/Brand: RCA (RCA Victor Co. Inc.); New York (NY)
Year: 1947 Type: Television Receiver (TV)Television receiver.
Alle Arten von Fernsehempfängern, angefangen von mechanischen Systemen, zu Röhren- und schliesslich zu IC-Systemen finden Sie unter diesem Typ. Es gibt im Radiokatalog (Ernst Erb) aber nur einige Beispiele davon. Nur durch Selbstinitiative wird dieses virtuelle Museum bzw. dieser KATALOG auch in dieser Richtung vollständiger. TV-Sammler sind gesucht!
Mod.-ID = 120522 previous | Result List | next | New search for Radios etc. Schematics etc.: 0 (for members) Principle Super-Heterodyne (Super in general); IF-Freq. 25750 kHzSuperhet - normally without a preamplification stage (as far as known). Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne. Normalement sans préamplification de HF.
Superhet ohne Vorstufe.
Nicht immer war bei der Erfassung klar, ob der Empfänger eine Vorstufe aufweist oder nicht. Im Zweifelsfall kam das Gerät in diese Kategorie.

Wave bands Wave Bands in notes or not known yet.Bitte geben Sie die Wellenbänder an, falls Sie mehr wissen.
Power type and voltage Alternating Current supply (AC) / 115 VoltAC set plus voltage range.
/ = 2 different voltages
- = voltage from-to
* = «Special»
Apparareil à courant alternatif. Tensions mentionnées.
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl/«Spezial»
Normalerweise sind diese Geräte mit einem Trafo mit Primär- und Sekundärwicklungen versehen. Dadurch führt das Chassis kein gefährliches Potential.

Loudspeaker/pwr.out Electrostatic Loudspeaker (high bias DC voltage)Electrostatic loudspeaker - requires high bias DC voltage. (condenser loudspeaker - Haut-parleur à condensateur. Ce type a besoin d`une haute tension de polarisation.
Elektrostatischer Lautsprecher. Diese arbeiten nach einem Prinzip, das einem Kondensator ähnelt. Es benötigt nebst der Tonwechselspannung eine hohe Gleichspannung. Äusserst selten. Siehe «Radios von gestern» Seite 61+332.
/ 3 W

www.radiomuseum.org Model: 721-TS (721TS) KCS 26-1 (KCS261) 60 cycles (Standard) Material Wooden caseWooden case. Most radios have a wooden cabinet until the WW2. Caisse en bois.
Die meisten Heim-Rundfunkempfänger führen von Beginn an bis etwa Ende 60er Jahre Holz als Gehäuse. Auch frühe Reiseempfänger zeigen Holz (speziell in den 20er Jahren) oder Holz mit Stoffüberzug etc.

Shape Tablemodel, high profile (upright - NOT Cathedral nor Tombstone).
Dimensions (WHD) 19 x 19 x 19 inch / 483 x 483 x 483 mm
Valves / Tubes 21: 6J6     (more for members)
Notes 10" round CRT with 8.5 x 6.38" b/w TV with 13 channel US standard VHF tuner, 3 MHz video resolution, 6 x 4" field coil speaker, some tubes equipped more than once, walnut or mahogany finish.
Collectors prices 1 Collector price (for members)
Source of data -- Original-ProspectProspektangaben des Herstellers aus der Zeit der Fabrikation.

This model was suggested by Anonymous 38 Collector.

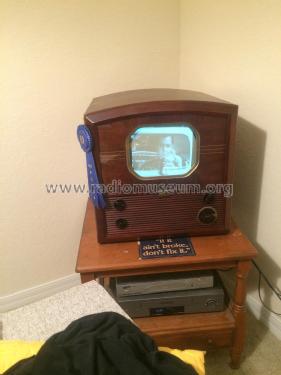

This is the case after it has been restored. I had to have the RCA decal made larger because it was too small for the decal man here to reproduce. I also omitted the small knob label decals. Otherwise, restoration is authentic to how I found the set. This is the back of the set as I found it and untouched. This is how the set was when I got it. It was left in a puddle of water in an old warehouse in Maine, USA, so it had some water damage. More pictures
