• Year
  • 1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 200464

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Main principle
  • Superhet with RF-stage; ZF/IF 460 kHz
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 10 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

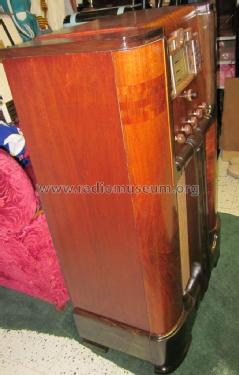

  • Model: 812K - RCA Victor International,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 28.75 x 43 x 15.375 inch / 730 x 1092 x 391 mm
  • Notes
  • There is also the similar US model 812K.
  • External source of data
  • Proposed by Ashis Mukerjea, Ontario, Canada
