For model Art Deco (smaller, 5 tubes) 60/70, Rubis; Fontaine-l'Evêque

Country:  Belgium
Manufacturer / Brand:  Rubis; Fontaine-l'Evêque
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 2A7 58 2B7 2A5 80 or 5Z3
Main principle Super-Heterodyne (Super in general); ZF/IF 110 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker 2 Loudspeakers / Ø 15 cm = 5.9 inch
Power out
from Radiomuseum.org Model: Art Deco 60/70 - Rubis; Fontaine-l'Evêque
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 630 x 275 x 275 mm / 24.8 x 10.8 x 10.8 inch
Notes

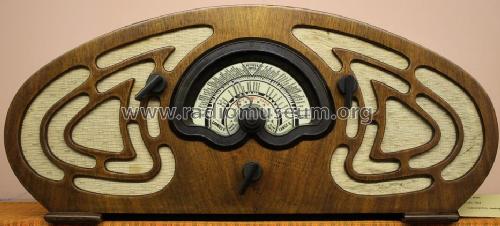

A very special shape with nice woodwork.

Two loudspeakers.  The 2 loudspeakers have field exitation: one in series and the other exitation coil in parallel.

An Art Deco table was available as accessory. See photos.

There was also a bigger version of this radio, width 800 mm, in two different versions: a 5-tube (Rubis 62/72) or 6-tube (Rubis 63/73) chassis.



Collectors' prices
Mentioned in Radios von gestern, 2. Auflage (Photo page 178)

Model page created by Ernst Erb. See "Data change" for further contributors.
