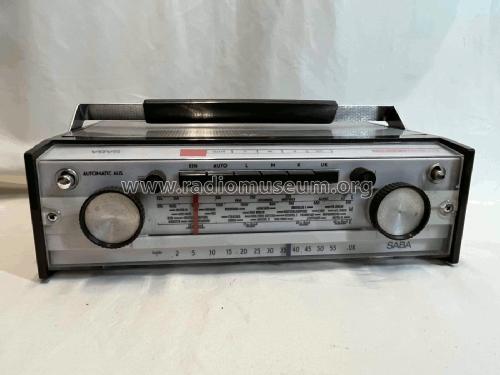

Transeuropa I Automatic

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 222574

• • Brand: Schwer & Söhne, GmbH

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors
• AF106 AF125 AF125 AF125 AF125 AF126 AF126 AC122 AC122 AC117 AC117 OC71 BA102 AA119 AA116 AA116 AA116 AA116

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 5 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Transeuropa I Automatic - SABA; Villingen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 190 x 95 mm / 11.4 x 7.5 x 3.7 inch

• Notes

• Batterien des Typs "Mono". Abschaltbare Scharfabstimmungsautomatik.
  Tragegriff als Hilfsantenne für UKW und KW.
  Induktive Abstimmung (L) auf MW bei Betrieb mit Autoantenne.
  Über Halterung auch als Autoradio verwendbar.
  Unterschied zu Saba Transeuropa Automatic derzeit nicht bekannt.

  UKW: 87 - 104 MHz
  KW: 5800 - 12000 kHz
  MW: 510 - 1630 kHz
  LW: 145 - 360 kHz

• Net weight (2.2 lb = 1 kg)
• 3.6 kg / 7 lb 14.9 oz (7.93 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Ottmar Lauth. See "Data change" for further contributors.
