OC71

Information - Help
ID = 33679

Country:
Europe
Brand: Common type Europe tube/semicond.
Tube type:  Transistor   Audio Frequency
Identical to OC71 = 2OC71 = 2N280
Similar Tubes
Other shape (e.g. bulb type):
  2N132 ; 2SB75 ; 992T1 ; AC122 ; AC125 ; AC126 ; AC151 ; OC303 ; OC66 ; TF65
Normally replaceable-slightly different:
  2G108 ; 2N189 ; 2N191 ; 2N192 ; 2N406 ; 2N77 ; 2SB171 ; 2SB173 ; 2SB44 ; 3AX71D ; 989T1 ; CK872 ; GC518 ; GTE1 ; OC1071 ; OC13 ; OC302 ; OC602 ; OC603 ; OC70 ; OX7004 ; SFT102 ; SFT151 ; SFT152 ; SFT153 ; SGS109 ; TK22C ; TS161 ; TS164 ; WN5420
Other class quality (otherwise equal):
  OC604 ; OC75
Different maximum ratings:
  GFT21 ; V10/50B
Other base and data slightly different:
  3AX31D ; OC870 ; OX6004
First Source (s)
Mar.1954 : Valvo-Berichte
Predecessor Tubes OC11
Successor Tubes AC122   AC125   OC75

Base Wires
Was used by Radio/TV-reception etc.
Description

PNP germanium transistor intended as pre-amplifier / driver in AF applications. All-glass body. Red dot indicates collector.
Also made by Philips and related manufacturing plants.
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
5 x 15 x mm / 0.20 x 0.59 x inch
Weight 2 g / 0.07 oz
Tube prices 2 Tube prices (visible for members only)
Information source -- Collector info (Sammler)   KTT 1969/70

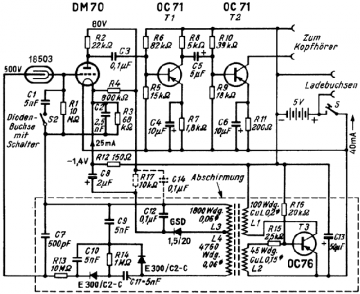

OC71: Funkschau 1958, Heft 15
Thomas Günzel † 1.8.22
    More ...
allglas_trans_1.gif OC71: TVT 73
Günther Stabe † 19.8.20

More ...
OC71: Valvo_Dioden_Transistoren_1959
Thomas Günzel † 1.8.22

More ...
Usage in Models 1= 1949?? ; 1= 1955?? ; 2= 1955? ; 2= 1955 ; 4= 1956?? ; 8= 1956? ; 25= 1956 ; 14= 1957?? ; 16= 1957? ; 61= 1957 ; 15= 1958?? ; 34= 1958? ; 106= 1958 ; 8= 1959?? ; 46= 1959? ; 145= 1959 ; 82= 1960?? ; 60= 1960? ; 218= 1960 ; 9= 1961?? ; 39= 1961? ; 163= 1961 ; 27= 1962?? ; 56= 1962? ; 143= 1962 ; 8= 1963?? ; 38= 1963? ; 114= 1963 ; 6= 1964?? ; 31= 1964? ; 62= 1964 ; 32= 1965?? ; 28= 1965? ; 30= 1965 ; 9= 1966?? ; 28= 1966? ; 18= 1966 ; 3= 1967?? ; 7= 1967? ; 7= 1967 ; 4= 1968?? ; 2= 1968? ; 5= 1968 ; 1= 1969? ; 3= 1969 ; 9= 1970?? ; 1= 1970? ; 3= 1970 ; 3= 1971?? ; 1= 1971 ; 1= 1973?? ; 1= 1974? ; 1= 1975? ; 1= 9999?? ; 5= 9999

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1747


Collection of



OC71


Variants

Found on sale on ebay, seller minifux1. Manufacturer : SI (¿?)


Forum contributions about this tube
OC71
Threads: 1 | Posts: 1
Hits: 5816     Replies: 0
OC71 (OC71)
Karl-Heinz Entrich † 7.21
09.Nov.11
  1

Hallo,

ich habe eine Philips "Evette L3X80T/90" in meiner Sammlung und in dieser wurden OC71.1 in der Vor- und Treiberstufe eingebaut.
Diese OC71.1 haben über den üblichen Glaskörper ein Metallgehäuse, ähnlich dem OC72. habe ich so noch nicht gesehen:

Der Isolierschlauch hält ihn im Normalfall am Chassis fest.


Vor- und Treiberstufe des L3X80T/90

Freundliche Grüße,

K.- Heinz Entrich

Leerzeichen und Bandwurmlink entfernt. WB.


OC71
