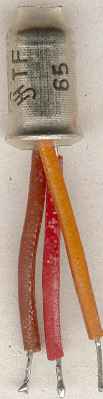

TF65

Information - Help
ID = 33951

Country:
Germany
Brand: Siemens; D (S.& Halske / S. Electrogeräte)
Tube type:  Transistor   Audio Frequency
Identical to TF65
Similar Tubes
Other shape (e.g. bulb type):
  OC71
Normally replaceable-slightly different:
  AC122 ; AC125 ; AC126 ; AC151 ; OC813 ; TF65M
First Source (s)
Mar.1957 : -- Collector info (Sammler)
Successor Tubes AC151

Base Wires
Filament Solid State
Description PNP germanium junction transistor intended as AF pre-amplifier.

Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
6 x 10 x 6 mm / 0.24 x 0.39 x 0.24 inch
Weight 2 g / 0.07 oz
Literature -- Collector info (Sammler)   KTT 1969/70, TVT 1979 ECA
  TF65: Siemens Schaltbeispiele 1958
Anonymous 88 Collector

TF65: F.H.
Anonymous 88 Collector


TF65: TVT 73
Günther Stabe


TF65: Funkschau 1955 H.11 S.227
Günther Stabe


Usage in Models 1= 1957 ; 3= 1958?? ; 1= 1958? ; 3= 1958 ; 1= 1959? ; 11= 1959 ; 6= 1960?? ; 1= 1960? ; 4= 1960 ; 1= 1961?? ; 2= 1961? ; 9= 1961 ; 3= 1962? ; 25= 1962 ; 19= 1963 ; 2= 1964?? ; 3= 1964? ; 19= 1964 ; 2= 1965?? ; 8= 1965 ; 1= 1966? ; 4= 1966 ; 1= 1968??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):130
