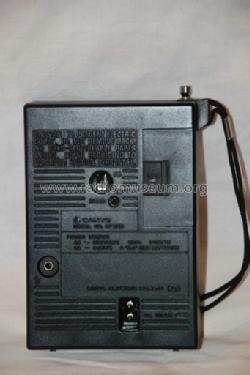

FM/AM 2 Band Receiver RP-5115 All

FM/AM 2 Band Receiver RP-5115; Sanyo Electric Co. (ID = 1355653) Radio FM/AM 2 Band Receiver RP-5115; Sanyo Electric Co. (ID = 657460) Radio
FM/AM 2 Band Receiver RP-5115; Sanyo Electric Co. (ID = 657462) Radio FM/AM 2 Band Receiver RP-5115; Sanyo Electric Co. (ID = 540034) Radio
FM/AM 2 Band Receiver RP-5115; Sanyo Electric Co. (ID = 681866) Radio FM/AM 2 Band Receiver RP-5115; Sanyo Electric Co. (ID = 681867) Radio
FM/AM 2 Band Receiver RP-5115; Sanyo Electric Co. (ID = 775855) Radio FM/AM 2 Band Receiver RP-5115; Sanyo Electric Co. (ID = 775856) Radio
FM/AM 2 Band Receiver RP-5115; Sanyo Electric Co. (ID = 1602773) Radio
Use red slider bar for more.
FM/AM 2 Band Receiver RP-5115; Sanyo Electric Co. (ID = 1355653) Radio
Sanyo Electric Co.: FM/AM 2 Band Receiver RP-5115 [Radio] ID = 1355653 933x907
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/AM 2 Band Receiver RP-5115 All, Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1985 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 240; 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: FM/AM 2 Band Receiver RP-5115 [All] - Sanyo Electric Co. Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 100 x 145 x 43 mm / 3.9 x 5.7 x 1.7 inch
Notes Sanyo RP-5115, AC-Battery Solid State FM/AM 2 Band Receiver;
Made in Singapore, different versions also with 220 VAC known.
Collectors' prices
Source of data -- Collector info (Sammler)

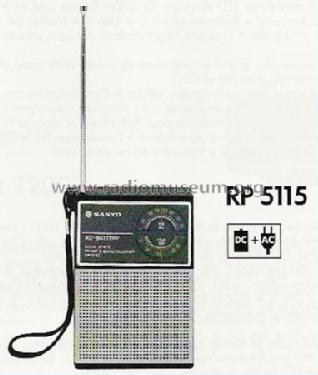

Mentioned in -- Original prospect or advert (Sanyo Portables 1985 (German & French))

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Here you find 1227 models, 1014 with images and 239 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
