FM/AM 2 Band Receiver RP-5115U

• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1986 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158590

• Picture
• Schematics

Previous Next

Previous Next

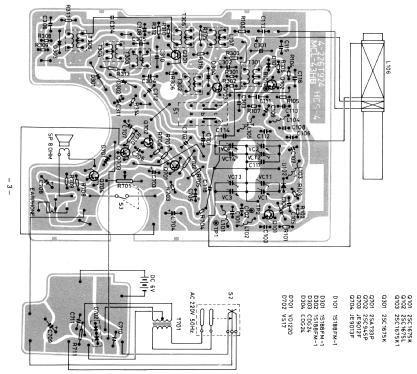

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

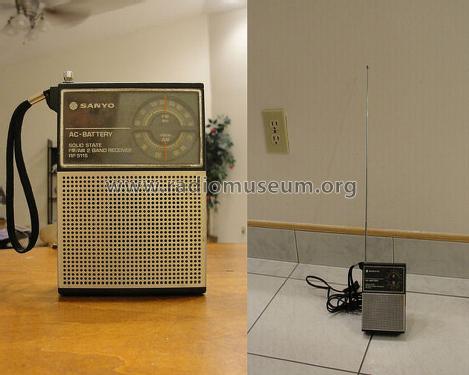

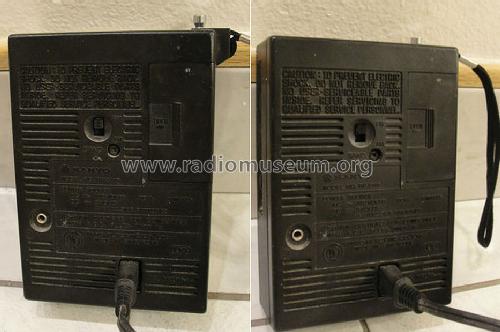

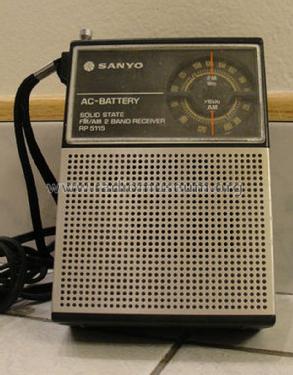

• Model: FM/AM 2 Band Receiver RP-5115U - Sanyo Electric Co. Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 102 x 145 x 45 mm / 4 x 5.7 x 1.8 inch

• Notes

• Sanyo RP-5115U, AC-Battery Solid State FM/AM 2 Band Receiver;
  Cycle dial scale, FM: 88 - 108 MHz, wrist strap, alu front grille, made in Japan.

  See also 240 V version RP-5115.

• Net weight (2.2 lb = 1 kg)
• 0.420 kg / 0 lb 14.8 oz (0.925 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 1722 models, 1548 with images and 463 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
