• Year
  • 1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 87401

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 484 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 4.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Ceres RP50 - SBR Société Belge Radio-
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 560 x 465 x 380 mm / 22 x 18.3 x 15 inch
  • Notes

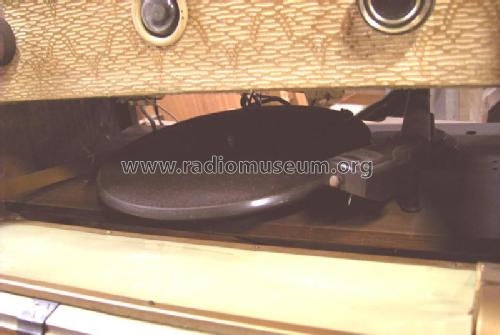

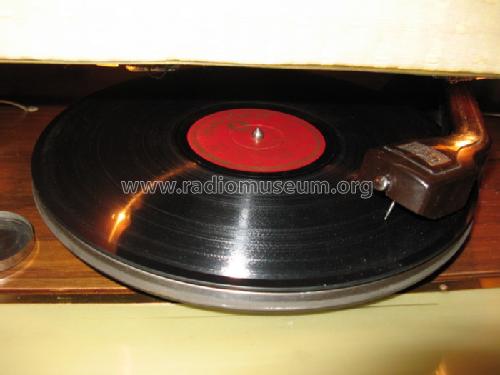

  • Skala aufklappbar, dahinter sitzt der Plattenspieler.
  • Price in first year of sale
  • 6,950.00 BEF
