• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57271

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6BA6 12AT7 6BE6 6BA6 6BA6 6T8 6V6GT 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 9022 Ch= 132.871 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12.5 x 7.5 x 7.5 inch / 318 x 191 x 191 mm

• Notes

• Silvertone Model 9022 is an AC Operated AM/FM Superheterodyne receiver with Loop Antenna.
  Color= Ivory. The Silvertone model 9021 is the same, but with outside FM antenna, gives better distance reception, $ 44.50.

• Price in first year of sale
• 37.50 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 20 covering 1950

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 10, 1950

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Date 11/49, Set 76, Folder 17)

• Literature/Schematics (3)

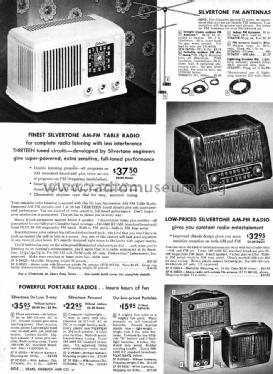

• Sears, Roebuck Catalogs (Silvertone) (#199, Fall & Winter 1949/50, page 768. #200, Spring & Summer 1950, page 604.)
