• Country
• France

• Manufacturer / Brand
• Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71033

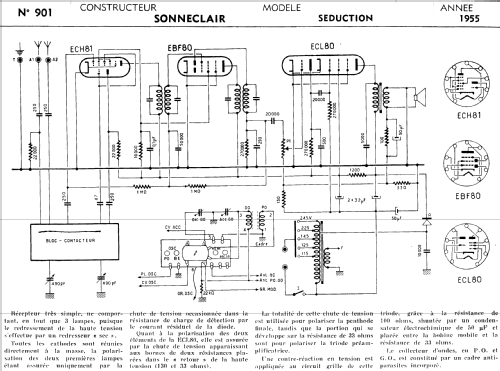

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECH81 EBF80 ECL80

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 225; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Bakelite case

• from Radiomuseum.org

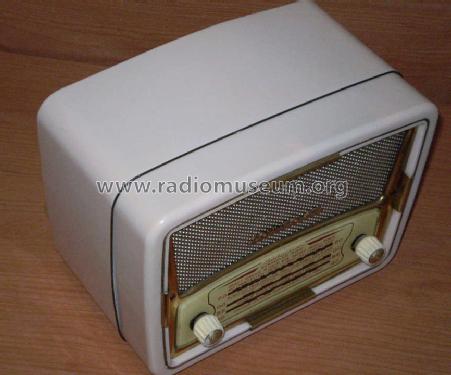

• Model: Séduction - Sonneclair, Hannecart & Dannay

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 250 x 180 x 180 mm / 9.8 x 7.1 x 7.1 inch

• Notes

• 4 gammes d'ondes: GO, PO, OC, BE. Sélecteur de gamme à cuseur. Cadre PO-GO incoporé. Antenne OC par fil en laiton (décoration de façade).

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Price in first year of sale
• 16,950.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Source of data
• -- Schematic

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
