• Country
• Germany

• Manufacturer / Brand
• Statron, VEB (Ostd.); Fürstenwalde

• Year
• 1969 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 161939

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECC85 EL95 EL34 EL34 EL34 EL34 StR85/10 StR85/10

• Number of Transistors
• 2

• Semiconductors
• GC123 GC123

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

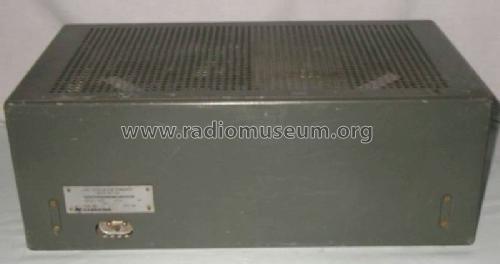

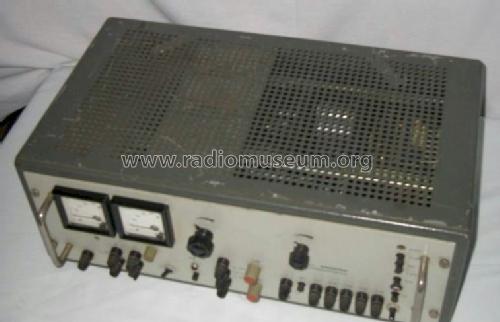

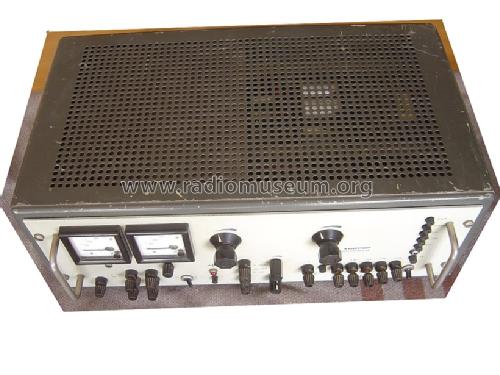

• Model: Gleichspannungsregler 303/1 - Statron, VEB Ostd.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 220 x 320 mm / 21.7 x 8.7 x 12.6 inch

• Notes

• Gleichspannung 0...300 V; 0,3 A max; 0...15 V; 0...150V 1 mA; Wechselspannung für Röhrenheizung 0-4; 6,3; 7,8; 9,6; 12,6 V.

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
