Stradivari 11E91 2-Wege Ton

Stradivari 11E91; Stern-Radio Rochlitz (ID = 91452) Radio Stradivari 11E91; Stern-Radio Rochlitz (ID = 162648) Radio

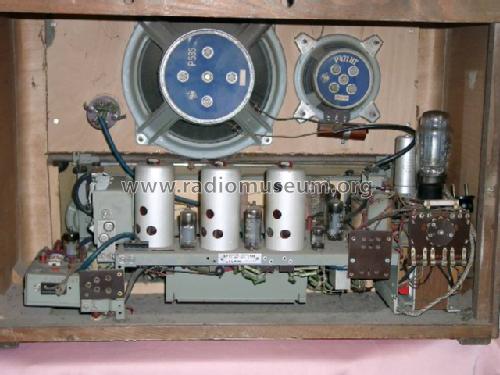

Stradivari 11E91; Stern-Radio Rochlitz (ID = 162649) Radio Stradivari 11E91; Stern-Radio Rochlitz (ID = 418371) Radio
Stradivari 11E91; Stern-Radio Rochlitz (ID = 584023) Radio Stradivari 11E91; Stern-Radio Rochlitz (ID = 584024) Radio
Stradivari 11E91; Stern-Radio Rochlitz (ID = 584025) Radio Stradivari 11E91; Stern-Radio Rochlitz (ID = 584026) Radio
Stradivari 11E91; Stern-Radio Rochlitz (ID = 584027) Radio Stradivari 11E91; Stern-Radio Rochlitz (ID = 584028) Radio
Use red slider bar for more.
Stradivari 11E91; Stern-Radio Rochlitz (ID = 91452) Radio
Stern-Radio Rochlitz: Stradivari 11E91 [Radio] ID = 91452 933x695
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stradivari 11E91 2-Wege Ton, Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG
Year: 1955 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: ECC81 EF85 ECH81 EF85 EM11 EBF80 EAA91 ECH81 EL84 EL84 AZ12
schematic requested
Main principle Superhet with RF-stage; ZF/IF 468/10700 kHz
Tuned circuits 9 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Stradivari 11E91 [2-Wege Ton] - Stern-Radio Rochlitz, VEB, RFT
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 660 x 450 x 330 mm / 26 x 17.7 x 13 inch
Notes permanentdynamischer Tieftonlautsprecher und permanentdymamischer Hochtonlautsprecher
Collectors' prices

Model page created by Jens Dehne. See "Data change" for further contributors.
